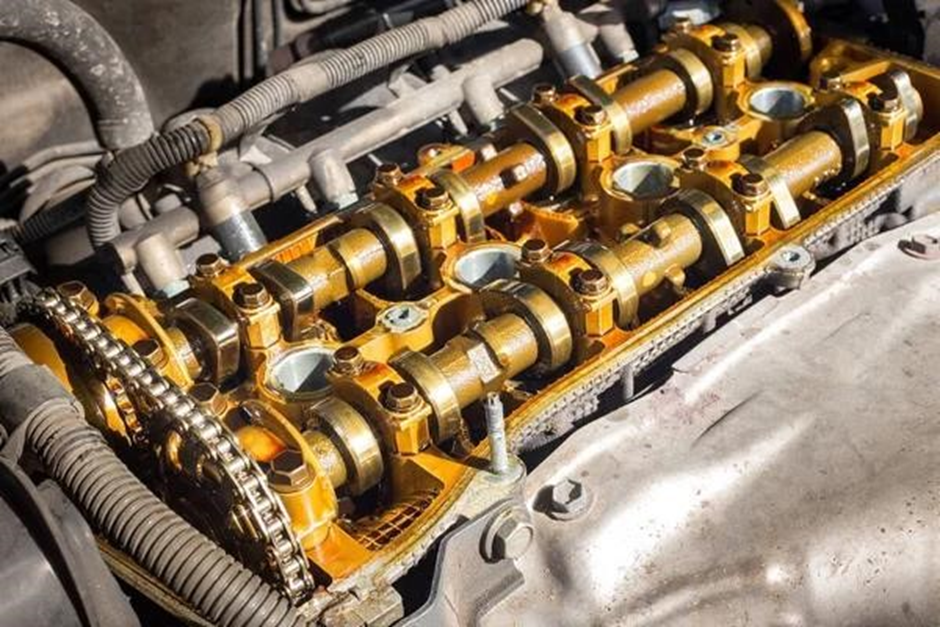

Choosing the right camshaft is one of the most critical decisions when building or upgrading an engine. The camshaft controls the timing and movement of the intake and exhaust valves, which directly affects your engine’s performance characteristics. Here’s a guide to ensure you select the ideal camshaft for your build.

1. Understand Your Vehicle's Purpose

Before diving into specifications, define the purpose of your engine. Are you building it for daily driving, racing, towing or off-road adventures? Different uses require distinct camshaft profiles. For example, a camshaft designed for high-RPM horsepower might not be suitable for a low-RPM torque-focused build.

2. Learn the Key Specifications

Familiarising yourself with camshaft terminology will help you make an informed decision:

• Lift: This determines how far the valves open. Higher lift improves airflow and can enhance performance, especially at higher RPMs.
• Duration: This refers to how long the valves stay open, measured in degrees of crankshaft rotation. Longer duration boosts high-end power, while shorter duration favours low-end torque.
• Lobe Separation Angle (LSA): Affects the overlap between the intake and exhaust valves. A narrow LSA improves low RPM torque, while a wider LSA enhances top-end power and smoothness.

3. Match Your Engine Components

Ensure the camshaft complements your engine’s components:

1. Compression ratio — higher compression works better with aggressive cam profiles.
2. Induction system — the type of intake and exhaust setup affects airflow requirements.
3. Valve train — consider whether your springs, lifters, and rockers can handle the camshaft’s specifications.

4. Seek Expert Advice

Consult with manufacturers, use camshaft selector tools, or speak with experts to narrow down your options. They can guide you to the best choice based on your engine setup and goals.

5. Test and Optimise

After installation, having a tune to suit ensures the camshaft delivers maximum performance. Adjusting timing and fuel delivery is crucial for getting the most out of your upgrade. With the right camshaft, you’ll unlock your engine’s true potential, tailored perfectly to your driving needs.

CONCLUSION

Choosing the right camshaft is essential to achieving your engine’s performance goals. By understanding your vehicle's purpose, matching components, and seeking expert guidance, you can ensure a perfect fit for your build. A well-selected camshaft transforms your engine, delivering power and efficiency tailored to your needs.
